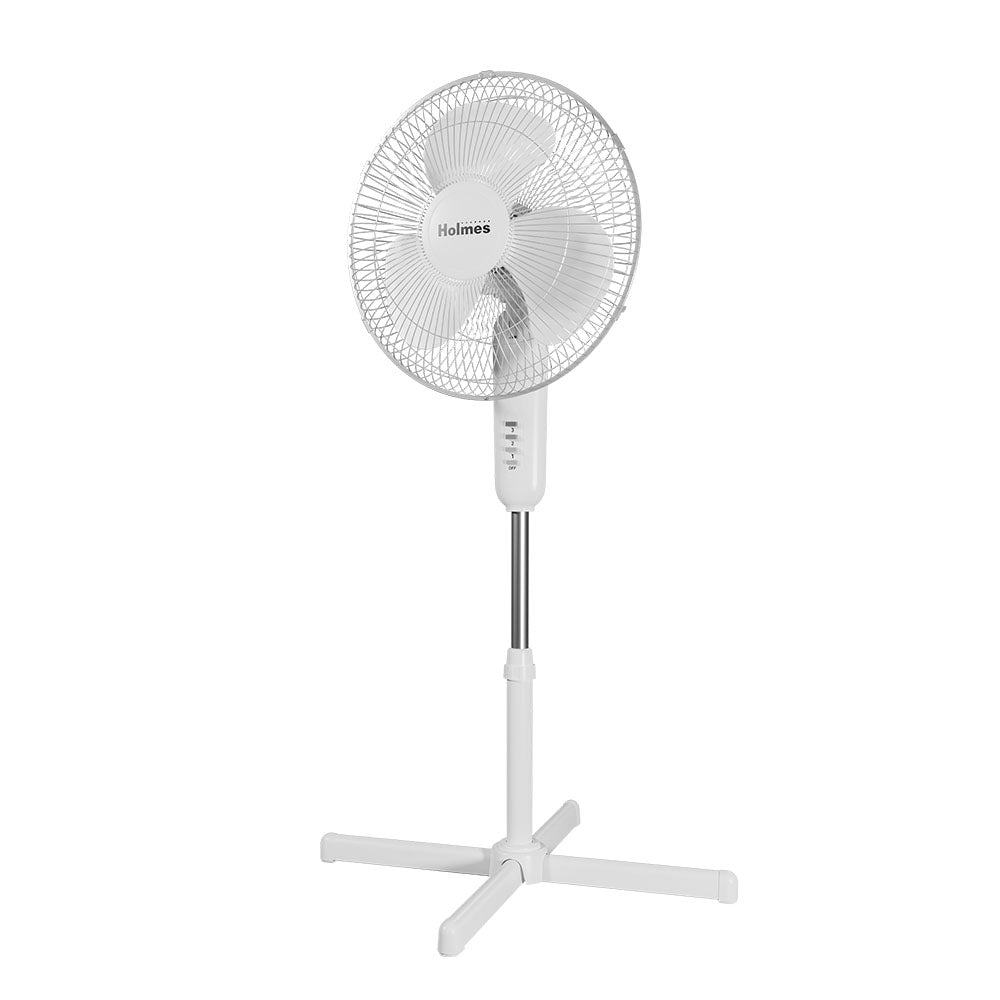

Holmes 16” Oscillating Manual Stand Fan makes cooling your space a breeze. With 3 speed options and easy push button controls, you can easily select from low, medium, or high settings for a customized cooling experience. This fan features a motorized 80° wide angle oscillation that delivers cooling airflow for larger living areas. The fan head can be tilted up to 30° and the height can be adjusted from 38" to 45" to ensure you can direct airflow where you need it the most. With an output of 1,700 cubic ft./min. and velocity of 16.4 ft./sec., this fan is ideal for use in living rooms, kitchens, bedrooms, and home offices. It features a sturdy cross metal base, modern white finish, and 3-year limited warranty.

Features

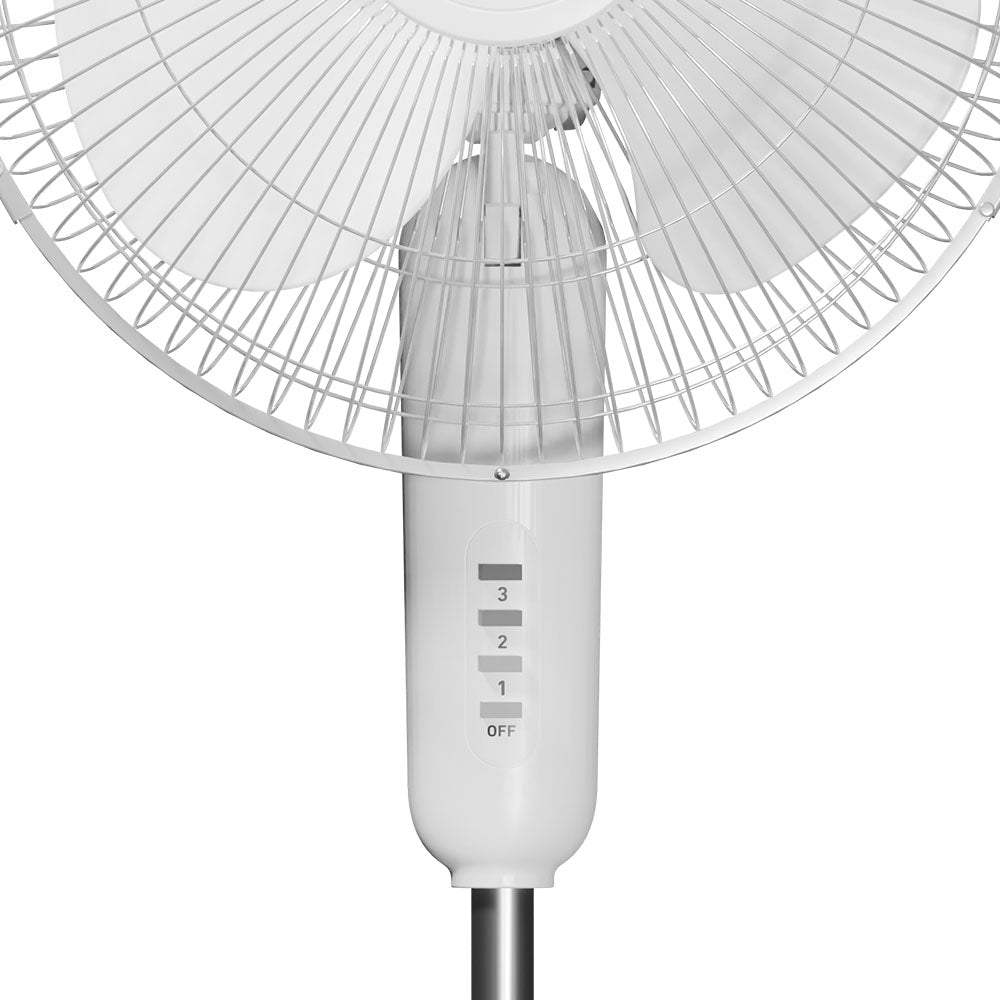

• 3 speed settings for customized comfort
• 55 decibels quiet operation

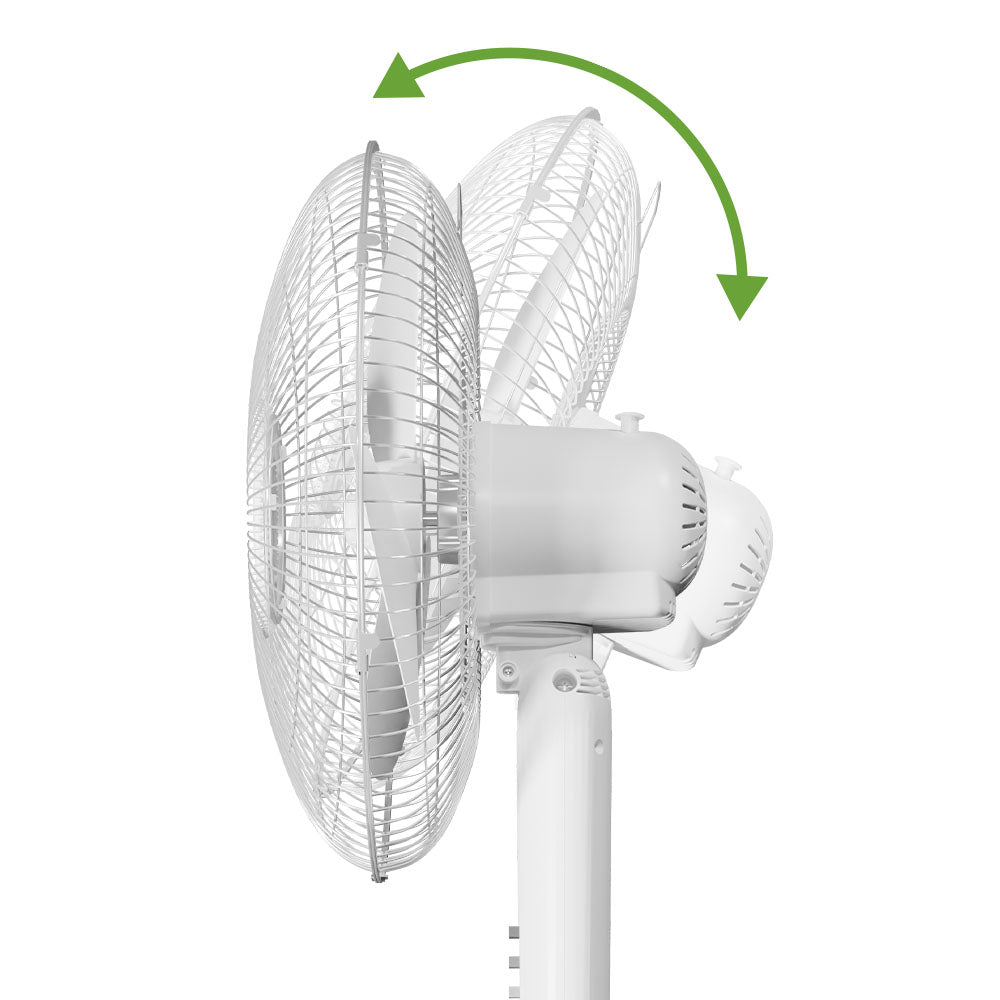

• Adjustable 25° head tilt to direct airflow where needed most

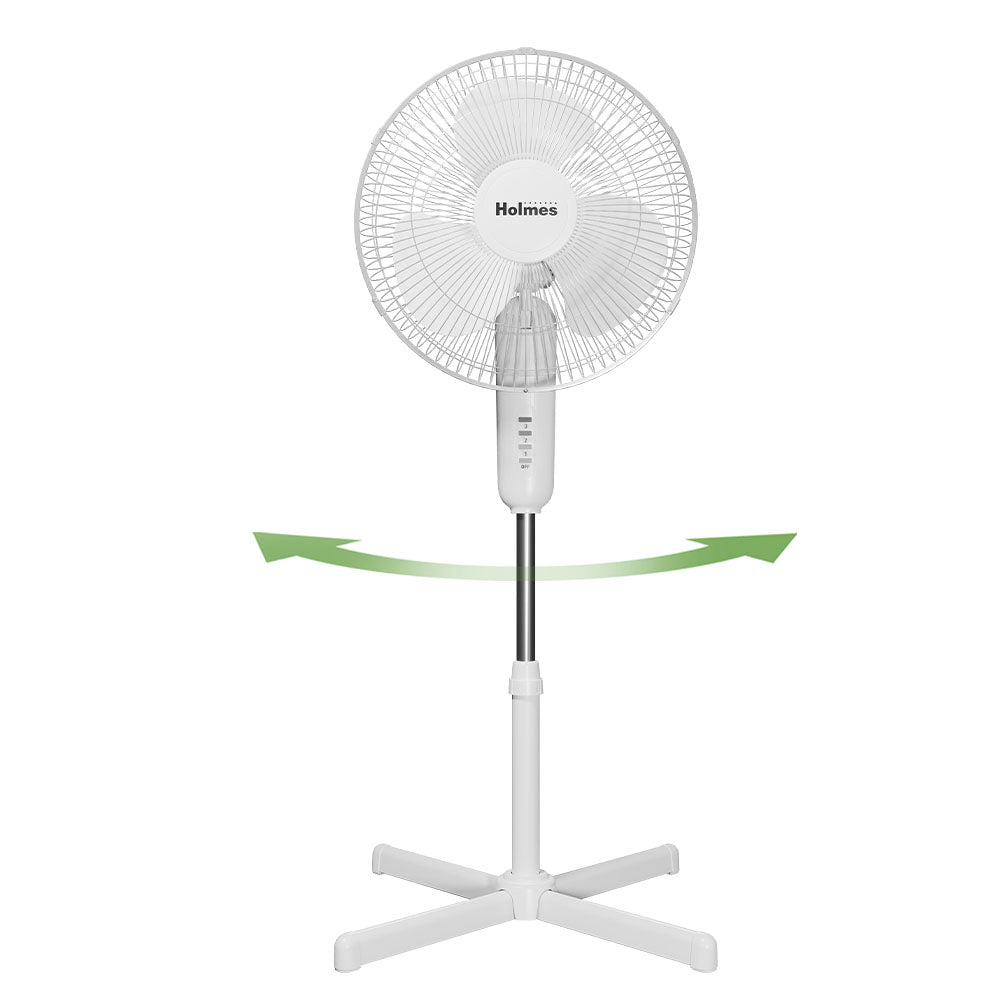

• Wide angle 75° oscillation delivers cooling airflow

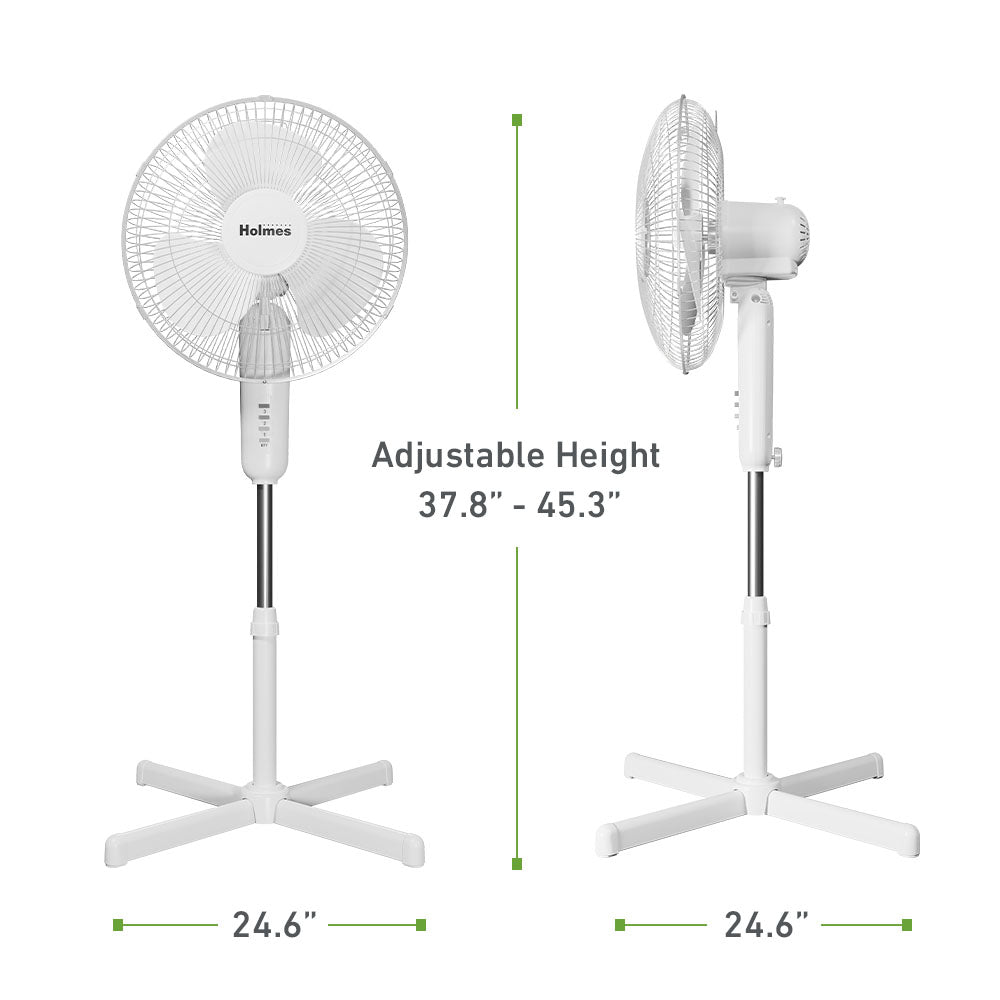

• Adjustable height from 38" to 45"
• Ideal for living rooms, bedrooms, kitchens, and home offices
• Metal cross base for sturdy support
• White finish and 3-year limited warranty

Specifications

• Item: 12213
• Model: 32510383
• Dimensions (L x W x H): 17" x 17" x 45"
• Fan Grill Diameter: 17"
• Weight: 6.12
• Speeds: 3
• CFM Airflow:
• Number of Blades: 3
• Operating Modes:
• Auto shut-off timer: No
• Control type: Manual
• Oscillation: 75°
• Adjustable Head: 25°
• Adjustable Height:
• Fan & Blade Material: Plastic
• Cord Length: 60"
• Mounting type: Free standing
• Wattage: 45

Care & Maintenance

Follow these instructions to correctly and safely care for your fan.

FAN CLEANING

• Always unplug the fan before cleaning or disassembling.
• Do not allow water to drip on or into the fan motor housing.
• Use only a soft cloth moistened with a mild soap solution.
• Do not use harsh chemicals such as gasoline, thinner or benzene as a cleaner.

FAN BLADE CLEANING

• Remove the front grill by opening the clips located around the perimeter.
• Clean the fan blade, front and rear grills with a soft cloth moistened with a mild soap solution.
• Securely fasten the front grill to the rear grill by closing the clips over the perimeter.

FAN HEAD, BASE AND POLE CLEANING

• Using a soft, moist cloth (with or without a mild soap solution), carefully clean the fan base, pole and head.
• Use CAUTION around the housing area. Do not allow the motor or other electrical components to be exposed to water.

FAN STORAGE

• This fan can be stored either partially disassembled or assembled.
• Store the fan in a clean, dry location between seasons or when not in use for an extended period of time.
• Keep the fan protected from dirt and dust during storage.
• NOTE: This fan can also be used during the cold winter season to circulate warm air throughout your home.

Instruction Manual

See Instruction Manual

Warranty

3 Year Limited Warranty
This device has a 3 Year limited warranty for the original purchaser from the date of purchase against workmanship and defects in material. If under normal use, your product fails to operate, a replacement or refund will be provided to you with proof of purchase. Star Elite Inc. may deny claims of damage caused by misuse or modifications of this product.
